Galvanized steel terrace support frames for HVAC equipment: robust solutions compliant with standards

In climate engineering, safety, durability, and equipment efficiency are absolute priorities. Galvanized steel terrace support frames provide solid support for equipment, including air conditioning units, air handling units, and heat recovery ventilation systems.

SUFIX has designed a range of galvanized steel support frames to meet the needs of climate engineering professionals. Discover the technical specifications of our solutions, their implementation, and their benefits, while finding answers to your most frequently asked questions.

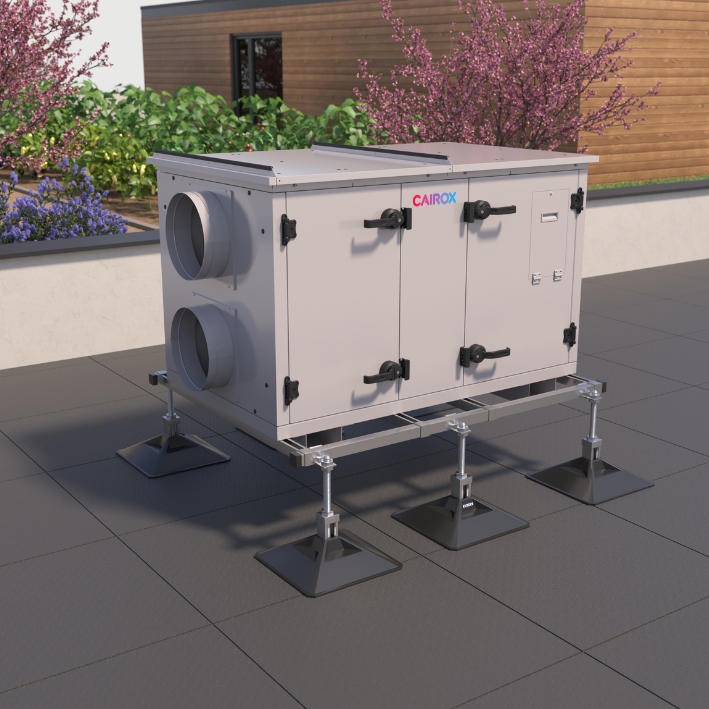

Technical specifications of SUFIX galvanized steel terrace support frames

Our support frames stand out for their robust design, adapted to demanding environments:

Manufacturing materials

• Hot-dip galvanized steel: ensures increased corrosion resistance and optimal durability, even in outdoor environments.
• 41 x 41 mm profile structure with a thickness of 2.5 mm for maximum robustness.
• Anti-vibration rubber feet (310 x 310 mm): effectively reduce vibrations transmitted to supporting structures and protect roof waterproofing.

Available sizes and models

• Available lengths: 1 to 3 meters, with the possibility of 1-meter extensions.
• Adjustable height: from 250 to 450 mm for standard models, and up to 872 mm for the DTU 43.1 version.
• Admissible load:
  • 500 kg (1-meter frame)
  • 1000 kg (2-meter frame)
  • 1500 kg (3-meter frame)

DTU 43.1 model features

• Foot height from 741 to 872 mm for optimal compatibility with soft membrane roofs.
• Disassemblable feet to facilitate waterproofing renovation work without compromising the integrity of the structure.
• Compliant with regulatory requirements for flat roof installations.

Implementation and Use

Installation

1. Site preparation: Clean and level the surface intended for the frame. Check the load-bearing capacity of the structure.
2. Waterproofing protection: Ensure anti-vibration mats are placed under each contact point to protect the waterproofing membrane.
3. Foot assembly: Attach the feet according to the desired configuration, respecting the recommended distances.
4. Height adjustment: Adjust the feet to the required height. Follow DTU 43.1 rules. The minimum height is 40 cm for L ≤ 1.20 m. For L > 1.20 m, the minimum height is 80 cm.
5. Drainage check: Ensure the installation does not block rainwater drainage.
6. Equipment attachment: Install HVAC equipment following the manufacturer’s technical recommendations.

Maintenance

Galvanized steel frames require little maintenance. An annual visual inspection and periodic cleaning are sufficient to ensure their durability. Regularly check:

• The condition of anti-vibration pads
• Possible presence of corrosion
• Tightness of fixings

Variants and Accessories

Finishing options

• Hot-dip galvanization for better corrosion resistance.
• Reinforced anti-vibration pads for extreme environments.

Available Accessoiries

• Modular extensions to adapt the length to your specific needs.
• Fixing kits adapted to different equipment.
• Specific supports for bulky equipment.
• Concrete slabs for additional ballast in case of strong winds.

Customized terrace support frames

• Frame sizing according to your equipment.
• Consideration of HVAC equipment dimensions and load.
• Solution adapted to the load and installation conditions (for example, wind pressure for roof installation) to avoid any risk of tipping.
• Frame equipped with Magnelis finish rails for optimal resistance in aggressive environments (2500 H salt spray resistance).
• Magnelis coating, with self-healing effect that ensures excellent edge protection (up to 3mm).

Regulatory compliance and safety

DTU 43.1 French regulation – Key points to remember

As an HVAC installer, if you work in France, you must imperatively respect these DTU 43.1 requirements:

• Minimum support height according to equipment length:
  • For L ≤ 1.20 m: minimum height of 40 cm
  • For L > 1.20 m: minimum height of 80 cm
  • Exception: reduced height to 30 cm possible if the equipment can be dismantled during waterproofing work
• Weight and transportability:
  • Each support block must not exceed 90 kg to allow handling by two people
  • This requirement facilitates interventions on waterproofing without lifting equipment
• Waterproofing protection:
  • Obligation to reinforce the waterproofing layer and insulation under each support
  • Mandatory use of resilient materials (anti-vibration mats) under supports

Site safety

• Install collective protection equipment compliant with NF E85-015 standard
• Limit the weight of elements to be manually handled
• Use suitable lifting equipment for heavy loads

Regulatory

HVAC installers are required to stay informed about and comply with the current standards applicable in their specific European region. While installation requirements may share common principles across Europe, significant variations exist between countries and sometimes between regions within the same country.

As a professional installer, it is your responsibility to research, understand, and adhere to the local regulations, building codes, and industry standards that govern HVAC installations in your area of operation. These standards are regularly updated to reflect technological advancements, safety improvements, and environmental considerations.

SUFIX provides solutions that can be adapted to meet various regional requirements, but the ultimate responsibility for standards compliance rests with the installer and the design offices. We recommend consulting with local regulatory bodies, professional associations, and certification organizations to ensure your installations meet all applicable standards.

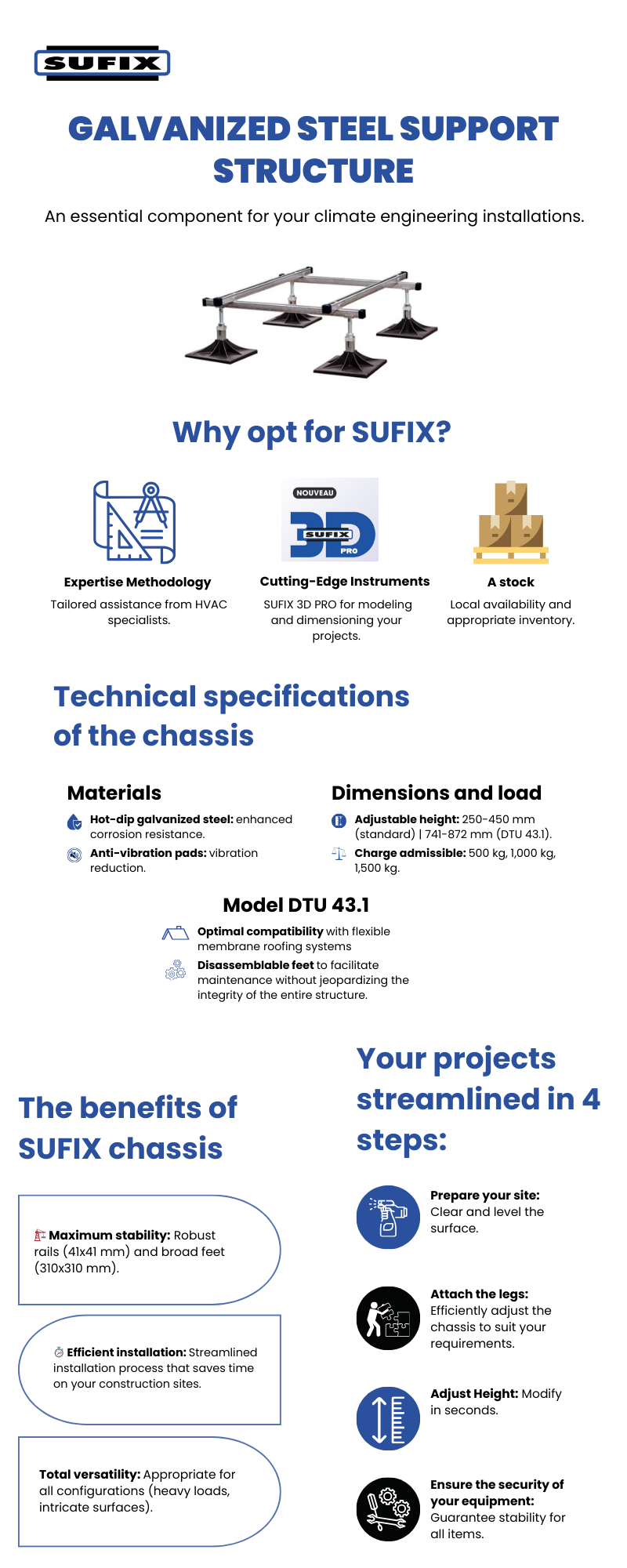

SUFIX galvanized steel terrace support frames in an infographic

With SUFIX, you benefit from recognized expertise and solutions designed to meet the requirements of HVAC installers. Our galvanized steel frames help you make safe and durable installations. They save you time on the job site.
